Loft ladder ISOCLIC PRO 76
WHILE STOCKS LAST ! New version available soon
Product description
WHILE STOCKS LAST ! 2024 model available soon
High quality, top loft ladders form the transition from the living area to the loft space. In addition to a simple and safe installation process the clickFIX® also prevents the loss of energy preventing the escape of warm air from the living area. The patented loft ladder ISOCLIC PRO 76 meets all requirements in one system. Its floor/ceiling height is up to 275 cm. Thanks to its modular construction and easy installation along with excellent insulation properties the loft ladder has a component U-value of 0.49 W / m²K.
EASY INSTALLATION FOR TRADE PROFESSIONALS AND DIY'ERS
Thanks to its low weight and patented assembly technology with click modules, ISOCLIC PRO 76 can also be easily installed by one person. It is simple, align the white 240 mm high casing into the stair cavity , screw in place, click on the trapdoor and ladder section and adjust to the room height, job done.
To ensure a perfectly airtight installation a vapor barrier is supplied with this product, this ensures an airtight connection between the loft ladder and the ceiling construction.
CPL COATING FOR LONG-LASTING PROTECTION

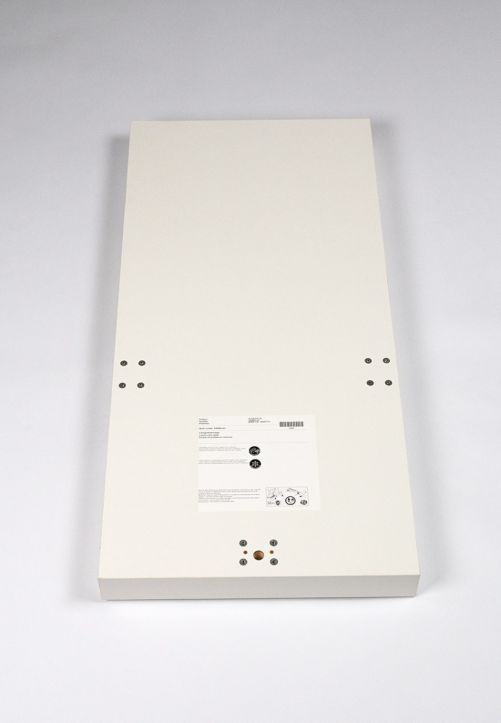

The 76 mm thick trapdoor of the ISOCLIC PRO 76 keeps heat efficiently in the living area and is also CPL-coated. With this particularly robust laminate, the trapdoor is significantly more abrasion, scratch and impact-resistant than other surfaces. The secret lies in the top layer, which consists of melamine resin. It withstands light scratches as well as normal dirt, it is solvent and heat resistant, smudge-proof, and easy to clean. The trapdoor maintains it bright white for a long time as impurities can be easily removed. In addition, CPL surfaces are colour and light-fast and therefore do not darken over time so the trapdoor not only fits discreetly into the ceiling it also remains in pristine condition.

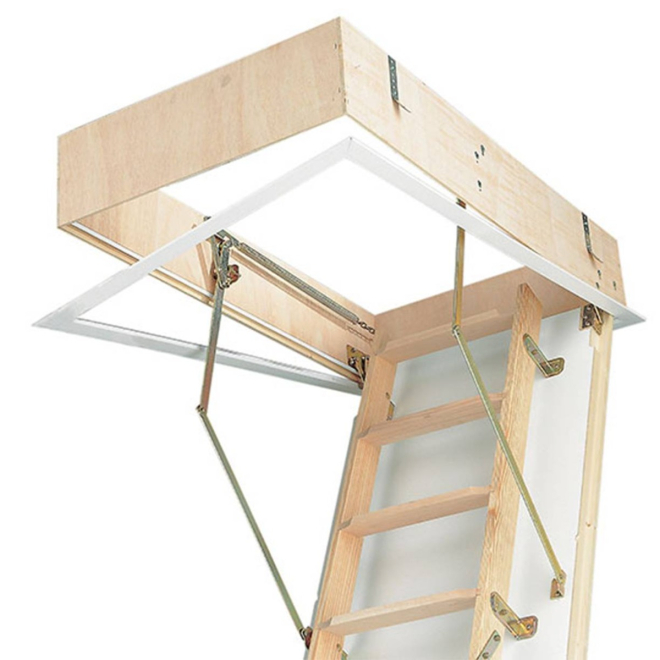

The plastic feet, architraves and handrail are included.
Technical data
|
1
|
Please select a variant |
|---|---|
|
2
|
Please select a variant |
|
3
|
Please select a variant |
|
4
|
Please select a variant |
| Product number | Please select a variant |
| EAN | Please select a variant |
| Opening size (length) | Please select a variant |
| Opening size (width) | Please select a variant |
| Floor-to-ceiling height | Please select a variant |
| Total going | Please select a variant |
| Swing clearance | Please select a variant |
| Horizontal clearance | Please select a variant |
| U-value (W/m²* K) | 0.4900 |
| Attic ladder type | Folding ladder |
| Usage | Manual |
| Sections | Please select a variant |
| Ladder material | Wood |
| Trapdoor material | Sandwich construction |
| Trapdoor thickness | 76 mm |
| Insulation | 70 mm |
| Casing material | Laminated pine, white |
| Casing thickness | 18 mm |
| Outside casing (length) | Please select a variant |
| Outside casing (width) | Please select a variant |
| Casing (height) | Please select a variant |
| Number of treads | Please select a variant |
| Tread rise | 235 mm |
| Tread material | Solid beech |
| Tread thickness | 17.5 mm |
| Tread width | Please select a variant |
| Tread depth | 83 mm |
| String material | Pine |
| String thickness | 21 mm |
| String depth | 83 mm |
| Width | 400 mm |
| Maximum load | 150 kg |
| Product weight | Please select a variant |
| Tested | U-value - tested as building component by testinstitute: IFT Rosenheim, Airtight EN 12207 class 4, EN 1026:2016, FSC® certified wood, Manufactured according to EN 14975 |
