Loft ladder ISOCLIC PRO CONFORT
WHILE STOCKS LAST ! New version available soon
Product description
Comfortable treads, telescopic handrail, and spring mechanism

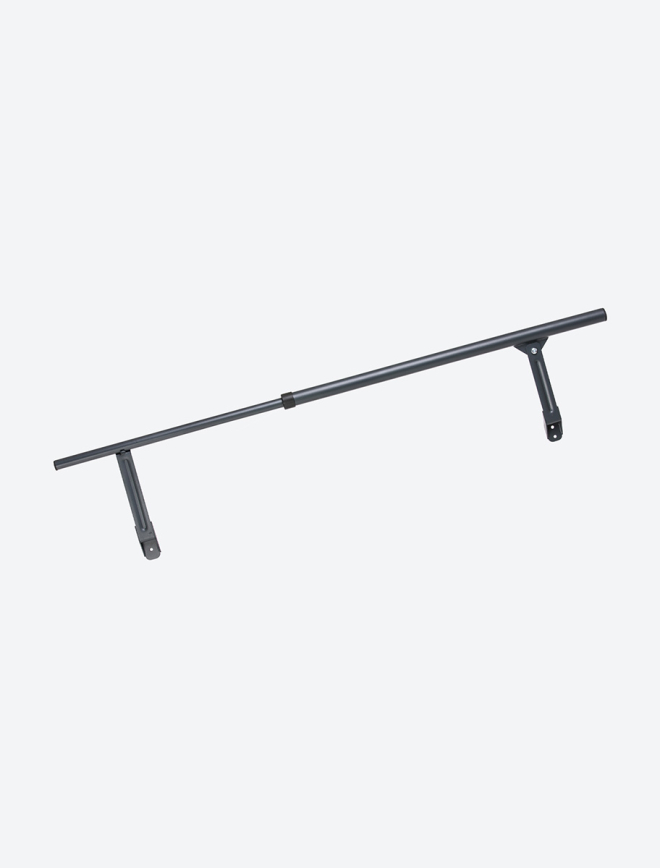

For greater comfort and safety, the steps of the ISOCLIC PRO CONFORT have been designed to be particularly deep. They are 13 cm deep and thus offer a very secure surface. The telescopic handrail allows secure grip when going up and down. ISOCLIC PRO CONFORT can be operated easy and comfortably. A spring mechanism makes folding and unfolding literally feather-light.
Improved installation
The ISOCLIC PRO CONFORT have a 3-section steel ladder with 11 steps. Upon request, it can be extended to 12 steps with an extension kit. Thus, a maximum floor-to-ceiling height of 264 cm or with extension 278 cm can be achieved. In addition, the feet of the ladder are telescopically adjustable. This allows the ladder to be easily and precisely adjusted to the ceiling height.

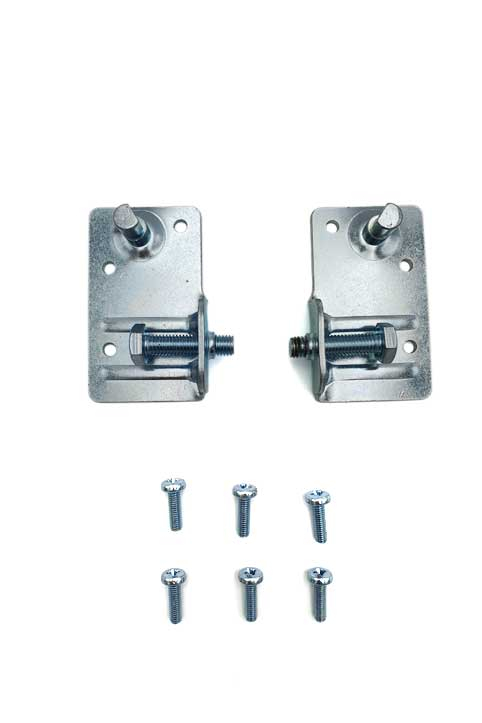

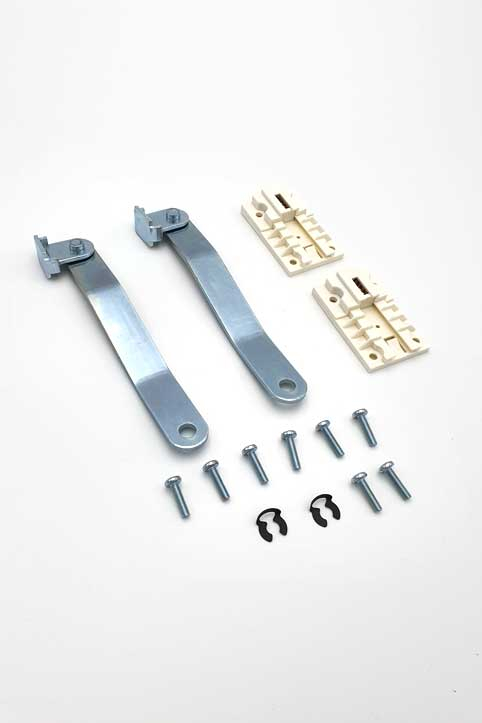

The new patented articulated lever is another improvement. It allows mounting without tools and convinces by an improved adjustability between lever and pivot plate. The lever is merely plugged onto the pivot plate, turned around and cannot be loosen again by itself. TIP: The lever should be oiled once a year for a long-term function. The 24 cm high casing offers better possibilities for installation in more insulated ceilings. For example, it can also be installed in lowered ceilings.
The ISOCLIC PRO CONFORT can easily be assembled by one person thanks to its low weight and patented assembly technology with Click modules: align the casing, screw it on, hook in the trapdoor and ladder section and adjust to the room height, done.
Energy efficient

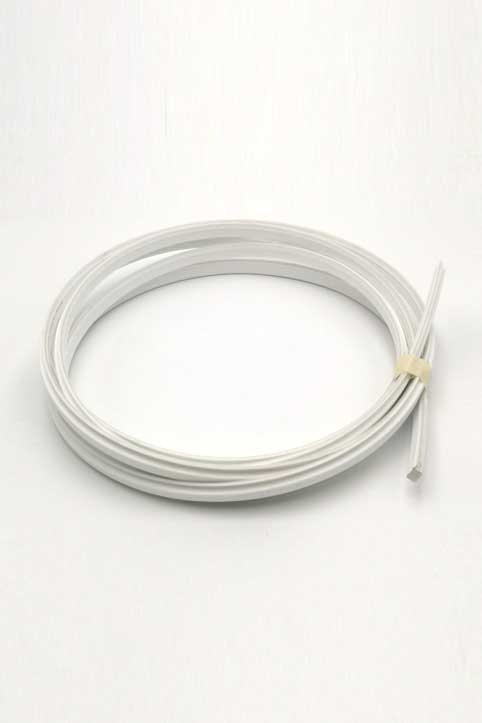

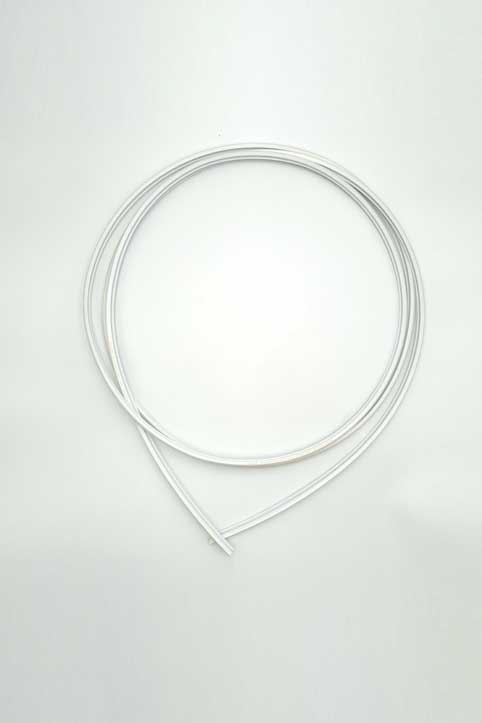

The patented ISOCLIC PRO CONFORT is optimally insulated and easy to install for the transition from the warm living room to the mostly cooler loft. It prevents the loss of energy due to the air tightness which is achieved through the draught excluder. The circumferential double seals and corner seals significantly reduce the risk of condensation forming and effectively protect against possible mould growth. ISOCLIC PRO CONFORT has a component-tested U-value of 0.49 W / m² · K tested by IFT Rosenheim.
Optional accessories:
Additional tread
Technical data
|
1
|
Please select a variant |
|---|---|
|
2
|
Please select a variant |
|
3
|
Please select a variant |
|
4
|
Please select a variant |
| Product number | Please select a variant |
| EAN | Please select a variant |
| Opening size (length) | Please select a variant |
| Opening size (width) | Please select a variant |
| Floor-to-ceiling height | Please select a variant |
| Total going | Please select a variant |
| Swing clearance | Please select a variant |
| Horizontal clearance | Please select a variant |
| U-value (W/m²* K) | 0.4900 |
| Attic ladder type | Please select a variant |
| Usage | Manual |
| Sections | Please select a variant |
| Ladder material | Steel |
| Trapdoor material | Sandwich construction |
| Trapdoor thickness | 76 mm |
| Insulation | 70 mm |
| Casing material | Laminated pine, white |
| Casing thickness | 18 mm |
| Outside casing (length) | Please select a variant |
| Outside casing (width) | Please select a variant |
| Casing (height) | Please select a variant |
| Number of treads | Please select a variant |
| Tread rise | 235 mm |
| Tread material | Steel |
| Tread thickness | 32 mm |
| Tread width | Please select a variant |
| Tread depth | 130 mm |
| Maximum height with additional treads | Please select a variant |
| String material | Steel |
| String thickness | 20 mm |
| String depth | 40 mm |
| Width | 380 mm |
| Maximum load | 150 kg |
| Product weight | Please select a variant |
| Tested | U-value - tested as building component by testinstitute: IFT Rosenheim, Airtight EN 12207 class 4, EN 1026:2016, Manufactured according to EN 14975 |
